Functional Features：

---

The GK652B gas fire extinguishing controller is divided into two types: 8U upward rejection and wall mounted, used for automatic alarm and control of fire extinguishing devices in gas fire extinguishing areas. Adopting LCD Chinese display, the operation is intuitive and convenient. The standard capacity is 255 G6 series coding points (which can be expanded to 510 points). The controller itself can drive four fire extinguishing zones (adding GK652BK can expand to 64 zones). It can be connected to other G6 series controllers and can be optionally equipped with a printer. It has the function of recording 1024 fire alarm events and 1024 other events. The controller provides faulty contacts.

Technical Parameter：

---

AC main power: AC220V+10% -15% 50 ± 1% Hz

DC backup power: DC24V, 4Ah/4.5Ah

Output current/voltage: 3A/24V

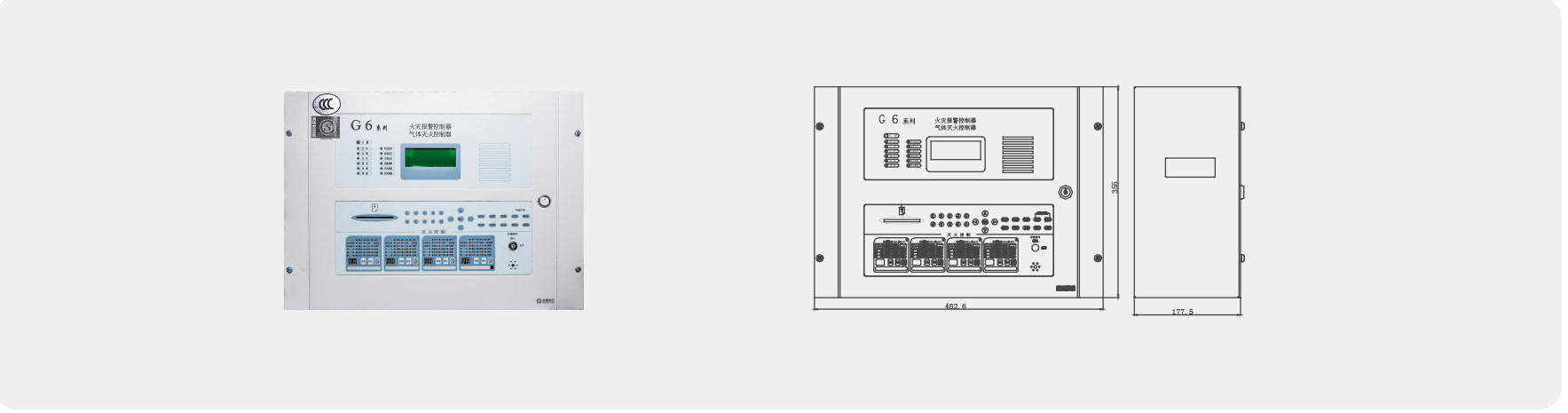

Dimensions: 482.6mm x 177.5mm x 355mm

Usage environment：

---

Temperature: 0 ℃~40 ℃

Relative humidity: ≤ 95% RH (40 ℃± 2 ℃)
