Functional Features：

---

Applied to the G7 series fire alarm system, this module occupies a coding address in the G7 controller circuit bus and can be paired with our company's GY701 point type photoelectric smoke fire detector (non coding detector), GW701 point type temperature fire detector (A2R) (non coding detector), and GM701 manual alarm fire button (non coding button). Capable of detecting short circuits and open circuits in active output lines; Equipped with DC24V power supply fault detection function. The bus has no polarity, and the 24V power supply has no polarity.

Technical Parameter：

---

Working voltage: DC24V Monitoring current: ≤ 0.6mA

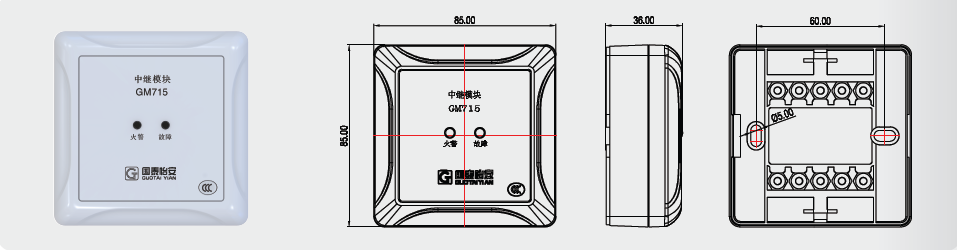

Alarm current: ≤ 1.0mA Dimensions: 85mm × 85mm × 36mm

Usage environment：

---

Temperature: -10 ℃~50 ℃

Humidity: ≤ 95% RH (40 ℃± 2 ℃)
