Functional Features：

---

Applied to G7 series fire alarm system, differential constant temperature alarm. This detector has a novel structure, beautiful appearance, stable and reliable performance, strong moisture resistance, and built-in CPU intelligent algorithm; It has the function of analyzing the authenticity of fire alarms; Having a learning mode,; Equipped with self diagnostic function; Using GS701 electronic encoder encoding, occupying one address (1-255). It needs to be used in conjunction with the coding base GT700, and the bus has no polarity. When used as a non coding detector, the relay module GM715 can be connected to the non coding detector base GT710, and the detector address does not need to be set (numbers 1-255 can be used).

Technical Parameter：

---

Working voltage: DC24V Static current: ≤ 0.6mA

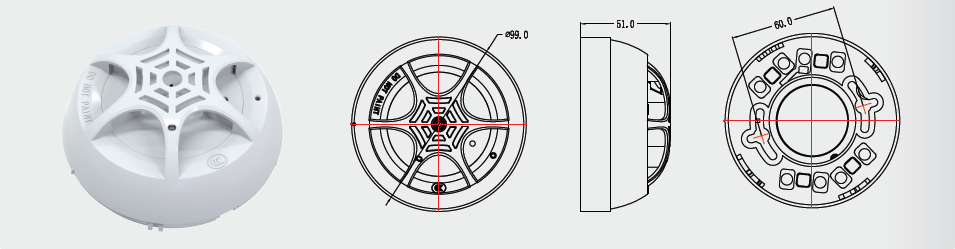

Alarm current: ≤ 1.2mA Dimensions: Φ 99mm × H51mm (including base)

Usage environment：

---

Temperature: -10 ℃~50 ℃

Humidity: ≤ 95% RH (40 ℃± 2 ℃)
