Functional Features：

---

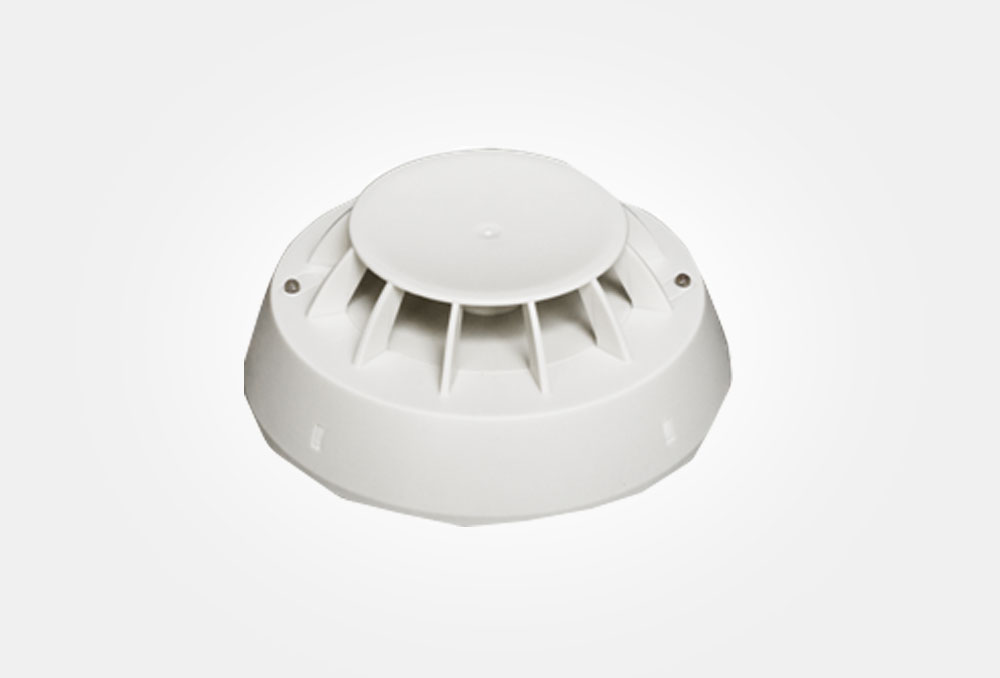

Applied in the G6 series fire alarm system. Ultra thin and beautiful, with built-in CPU intelligent algorithm; Having the ability to analyze the authenticity of fire incidents; Automatically adjust sensitivity; Having a learning mode; It has self diagnostic function. Using GS601A electronic encoder encoding, occupying one address (1-255). It needs to be used in conjunction with the GT601 base, and the bus has no polarity. When encoding 0 code, it is used as a non coding detector and is connected to the relay module GM614W and GT610 non coding base.

Technical Parameter：

---

Working voltage: DC24V;

Static current: ≤ 600 μ A;

Alarm current: ≤ 1.2mA;

Dimensions: Φ 101.3mm × 38.1mm.

Usage environment：

---

Temperature: -10 ℃~50 ℃

Relative humidity: ≤ 95% RH (40 ℃± 2 ℃)
