Functional Features：

---

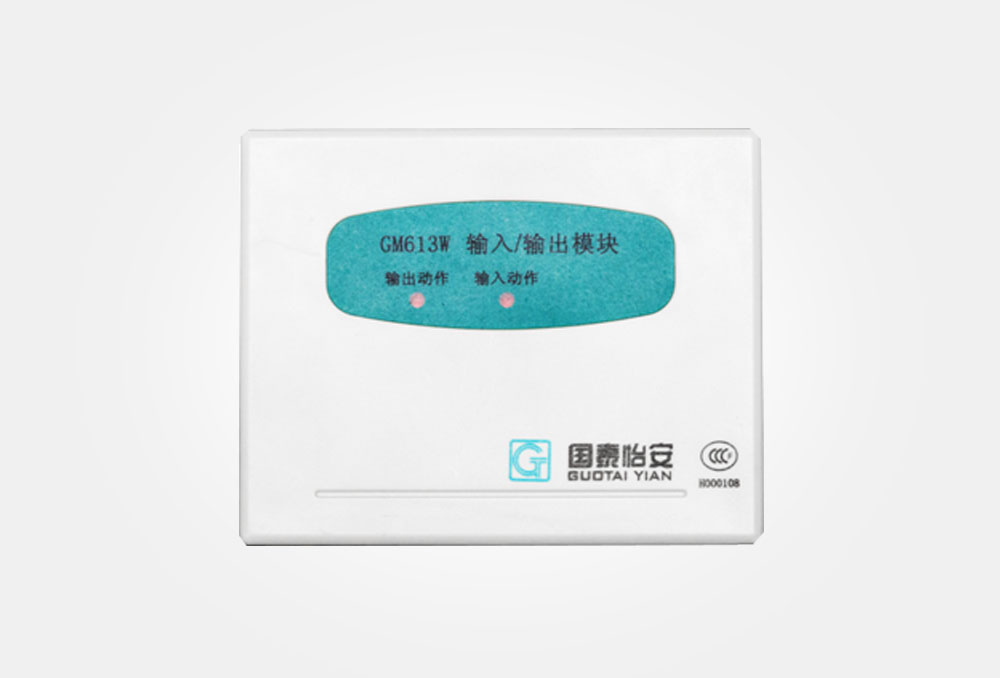

Applied to the G6 series fire alarm system. Used to control passive devices and receive feedback signals from on-site device actions. For example: emergency landing of elevators, power boxes, smoke exhaust vents, etc. The output can select a set of passive normally open/normally closed contacts or choose a DC24V level signal for starting or stopping peripheral linkage devices, and can also receive a response signal (null contact) after the linkage device is activated. The output can be set to either active or passive mode, while the input can be set to either normally open answer, normally closed answer, or no answer mode. Both the signal output terminal and the response terminal can achieve short-circuit and open circuit monitoring functions (adapters need to be selected). When used as a passive output, there is no need to separately connect an external power cord. It needs to be used in conjunction with the GM610 universal module base. The bus has no polarity. The module requires 24V power supply.

Technical Parameter：

---

Working voltage: DC24V;

Action current: ≤ 1.6mA;

Contact capacity: DC30V/2A;

Static current: ≤ 600 μ A;

Dimensions: 100mm × 80mm × 36mm.
