Functional Features：

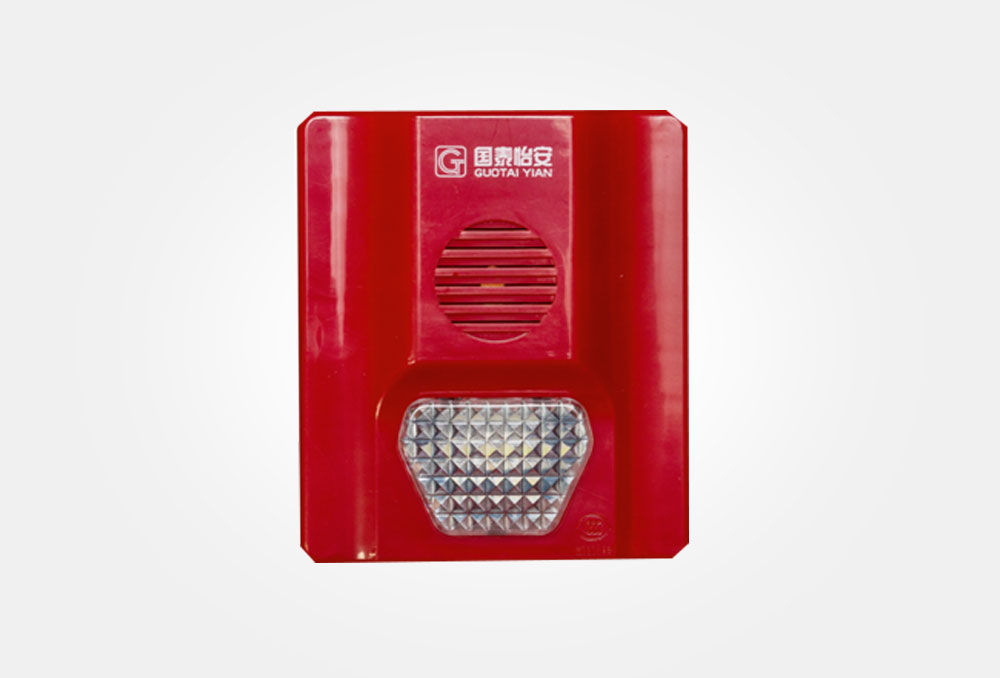

Applied in fire alarm systems. Adopting advanced SMT production technology. Set the GM633W address to 1-255, and GM633W is a coded fire sound and light alarm. The wiring method is L+and L - as return lines, 24V and GND as power lines; Set the GM633W address to 0, and GM633W is a non coding fire sound and light alarm. After receiving the control signal, a strong sound and light alarm signal is emitted to remind on-site personnel to pay attention. Bus infinite continuity.
GM633-DZ base needs to be connected.
Technical Parameter：
Bus voltage: DC24V;
Bus monitoring current: ≤ 0.4mA;
Power starting current: ≤ 30mA;
Bus startup current: ≤ 30mA;
Flash frequency: 1Hz-2Hz;
Power supply voltage: DC24V;
Power monitoring current: ≤ 2.6mA;
Alarm volume: 75dB-100dB;
Dimensions: 100mm × 86mm × 43mm.
Usage environment：
Temperature: -10 ℃~50 ℃
Relative humidity: ≤ 95% RH (40 ℃± 2 ℃)
